SUSTAINABILITY AND CONTROL

Less Water. Greater Process Control.

The optional Zero-Wastewater recirculation system can reduce water required for belt cleaning by 90%, while integrated diagnostics and automatic systems support reliable production.

Up to 90% less belt-cleaning water

Built-in automatic belt washing

Advanced self-diagnosis

Head-crash protection

Nozzle-shooting system

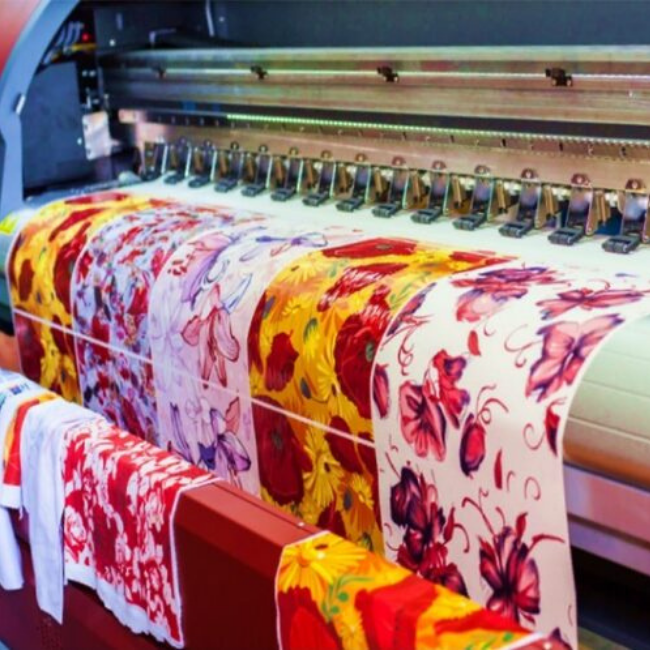

MULTI-PASS DIGITAL PRINTING

Direct-to-Fabric Performance

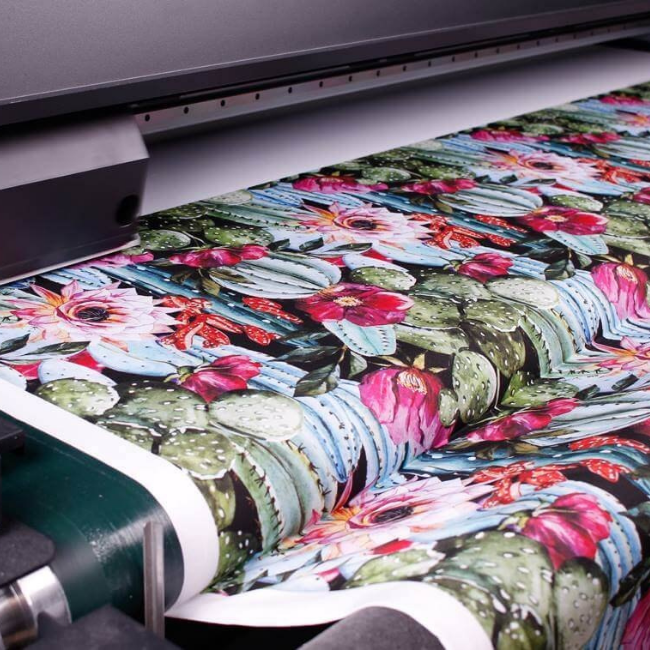

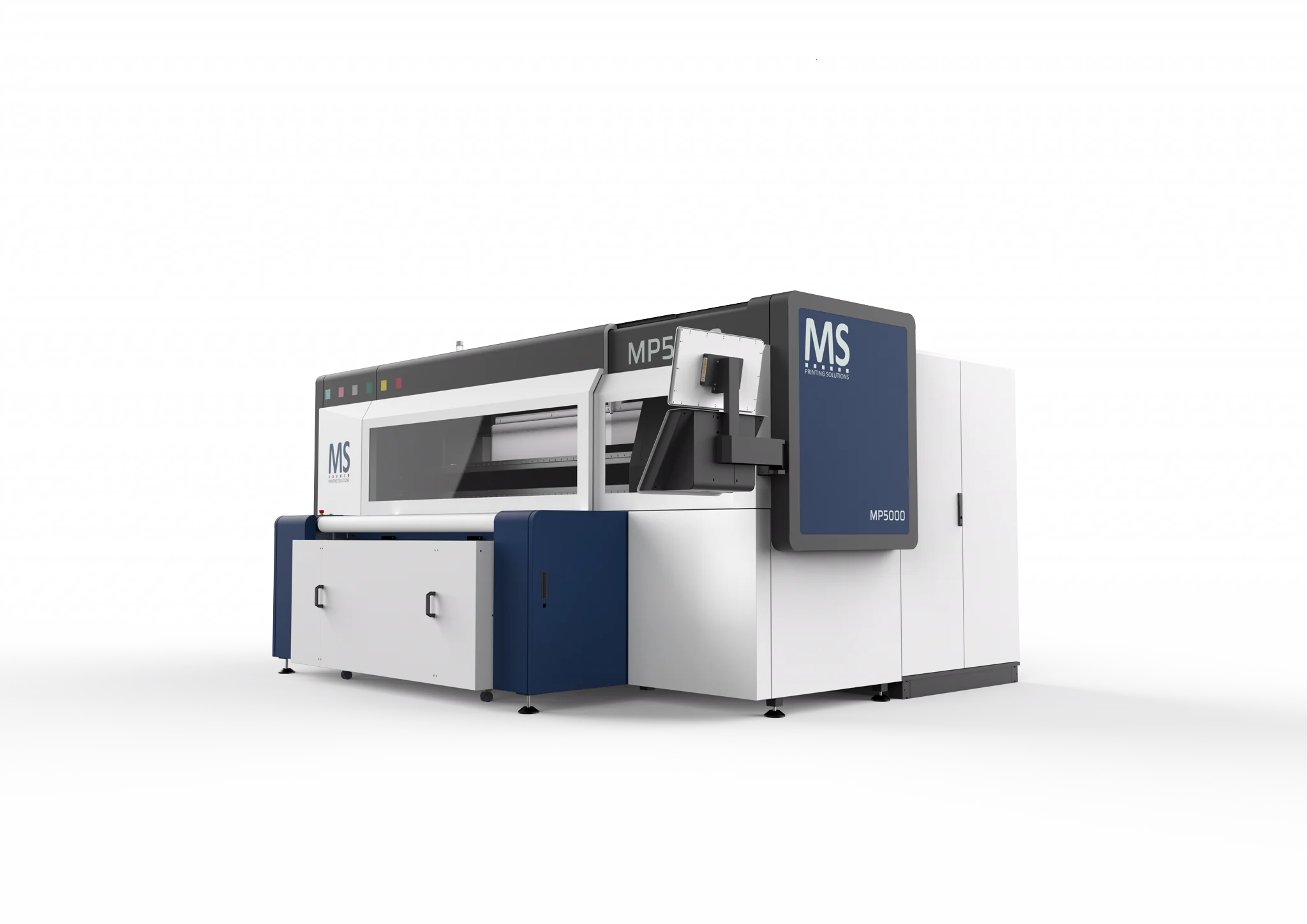

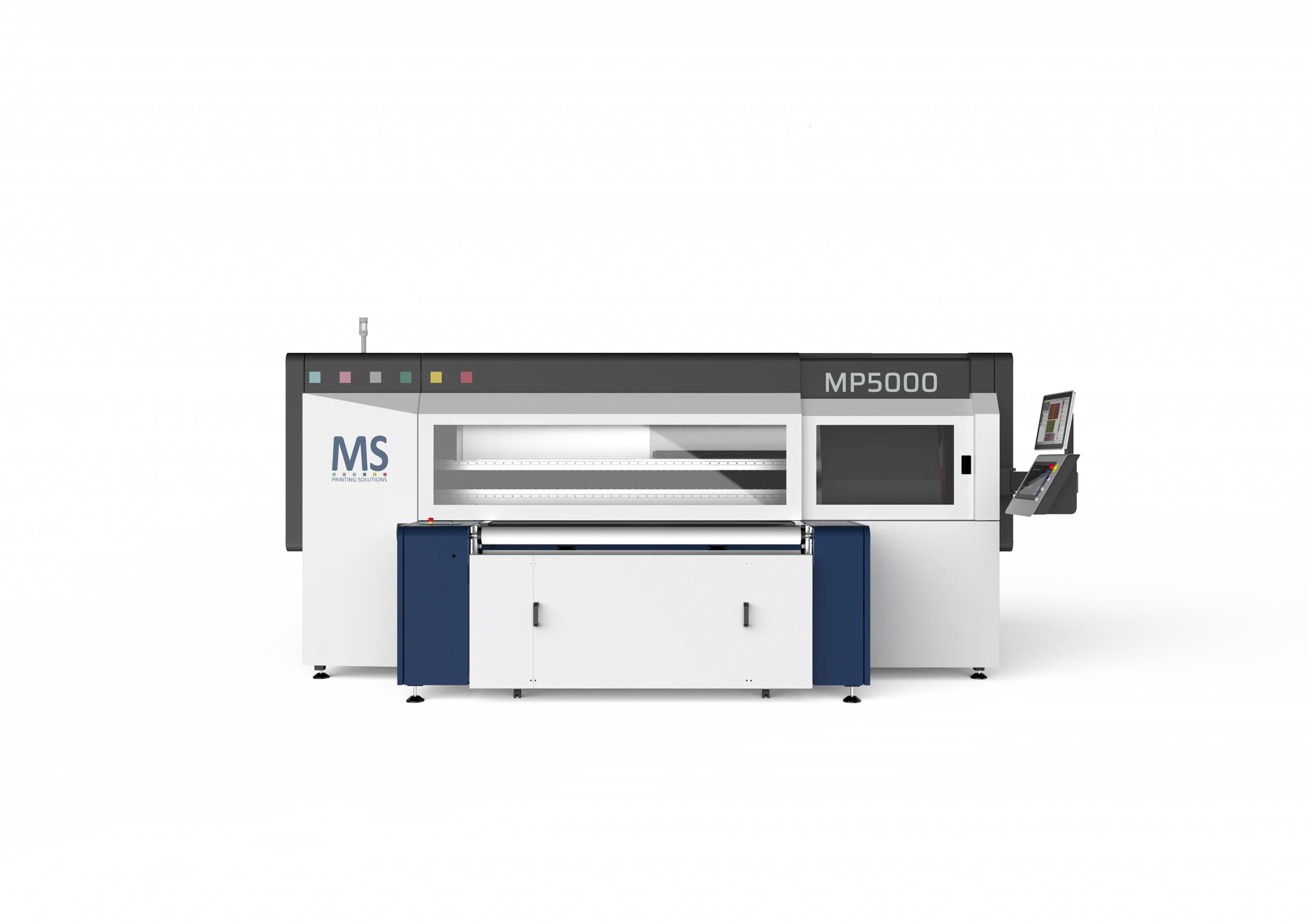

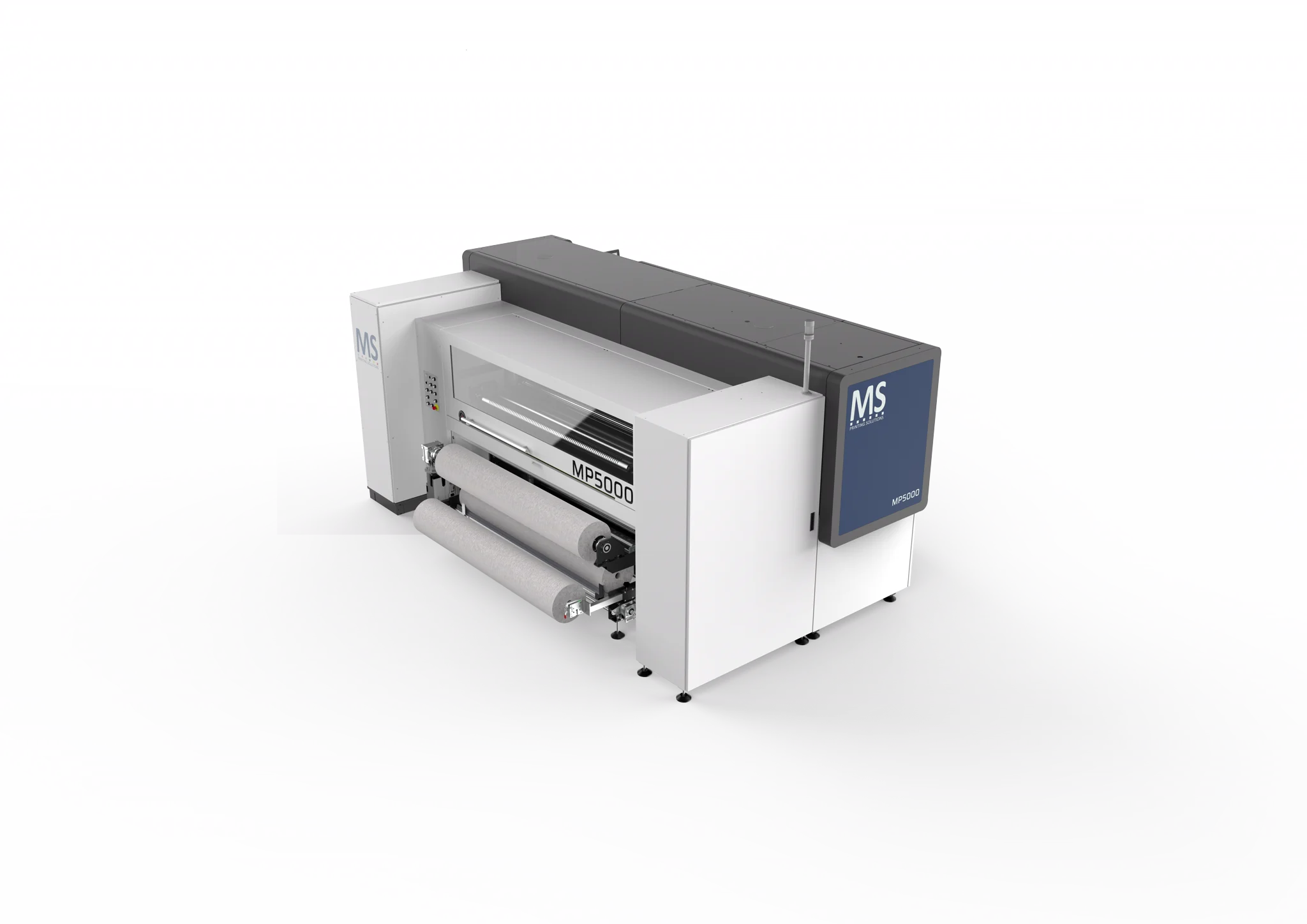

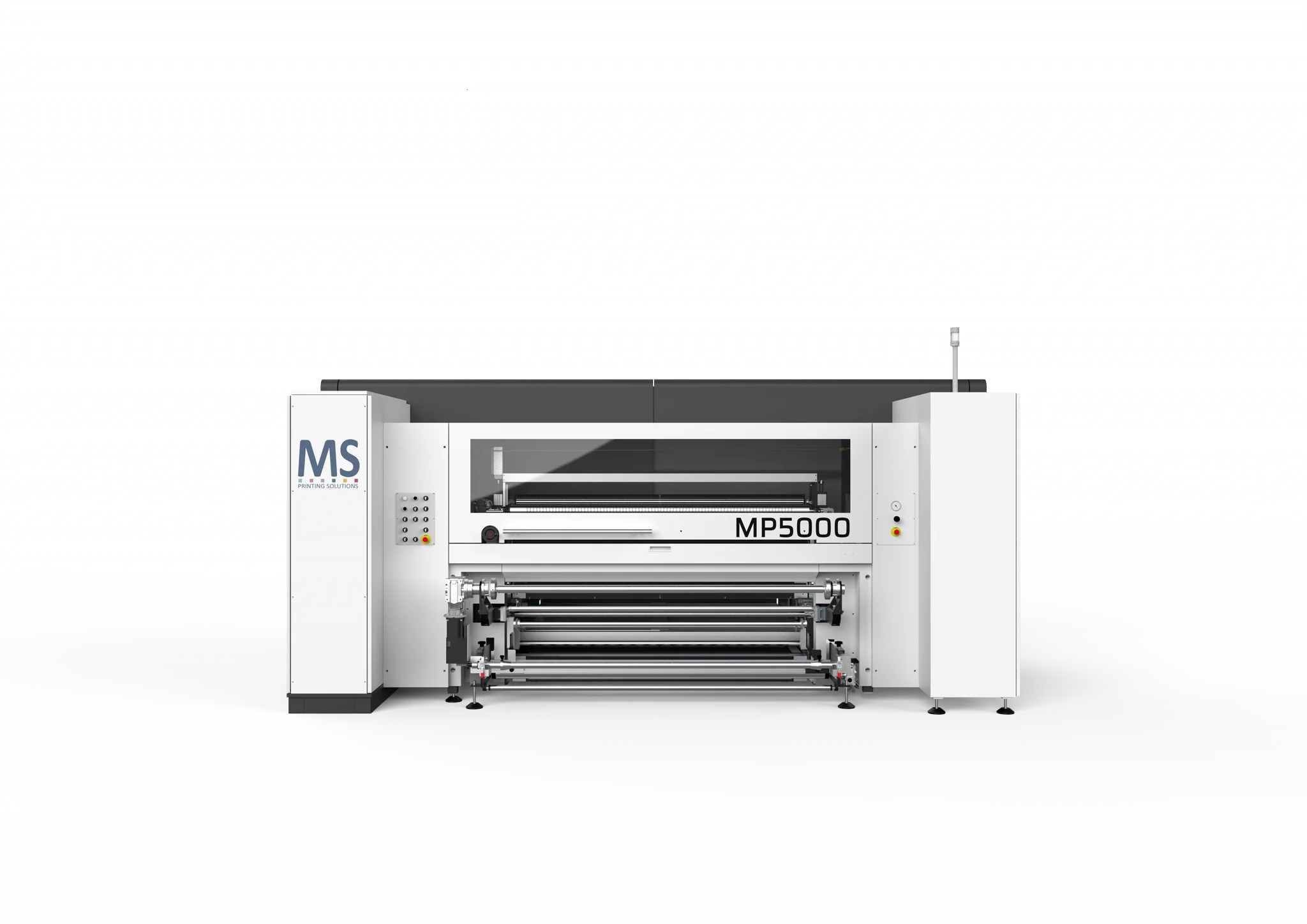

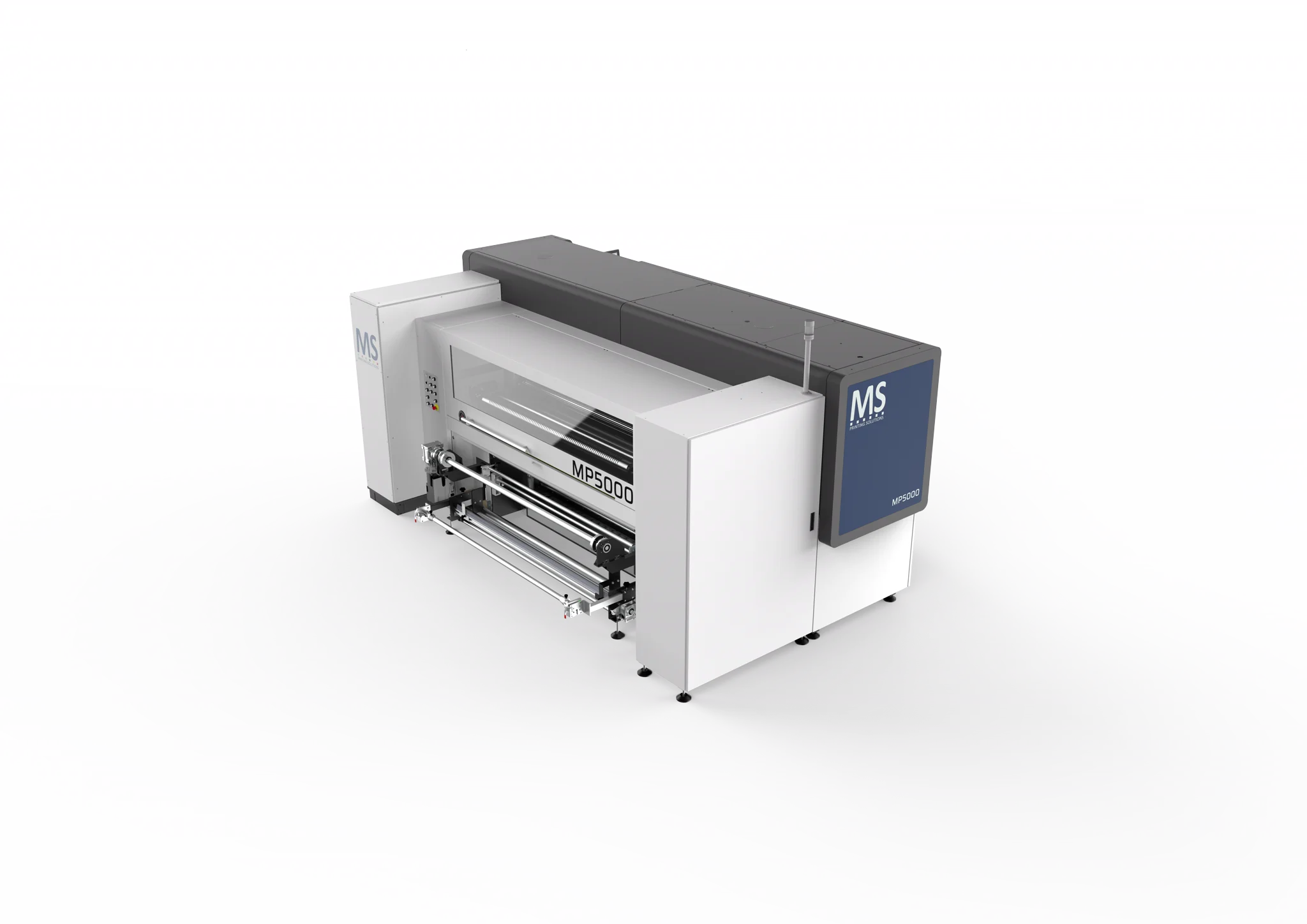

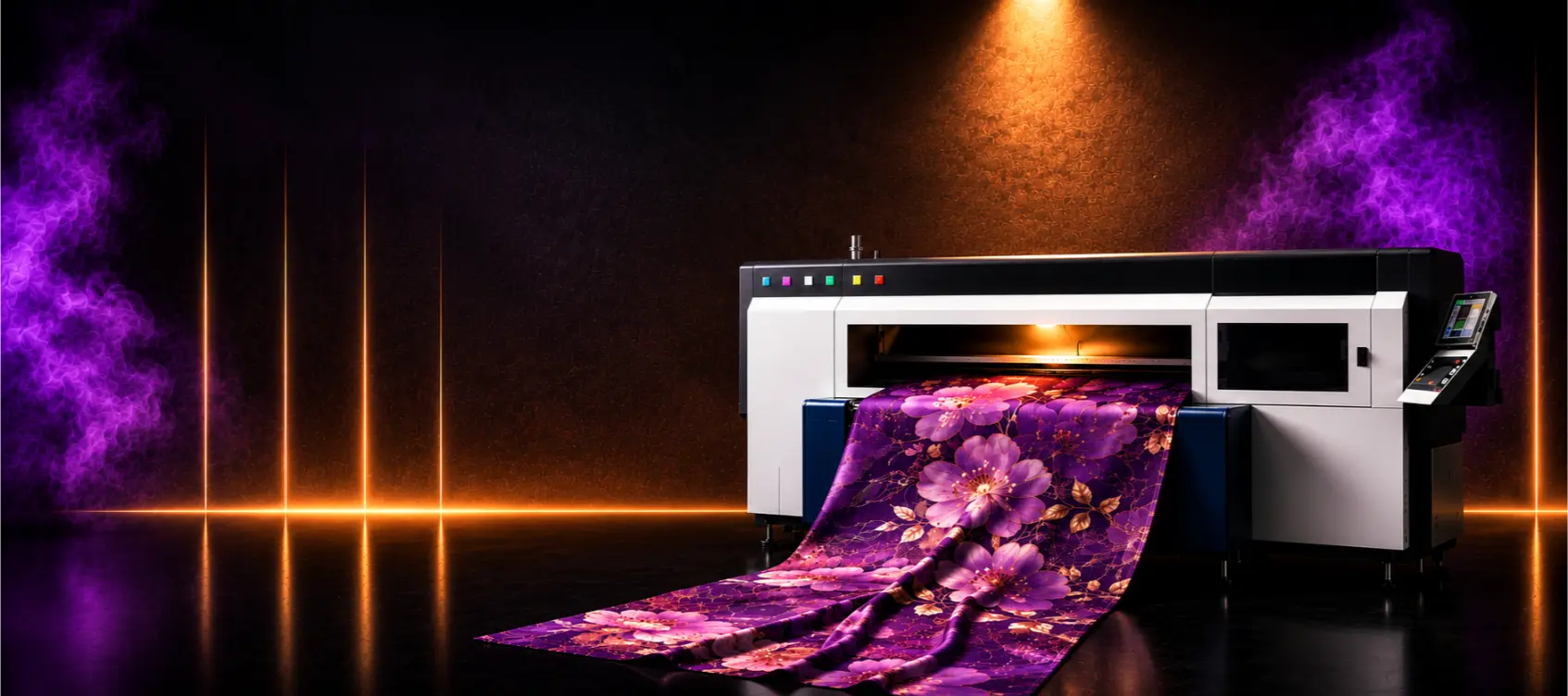

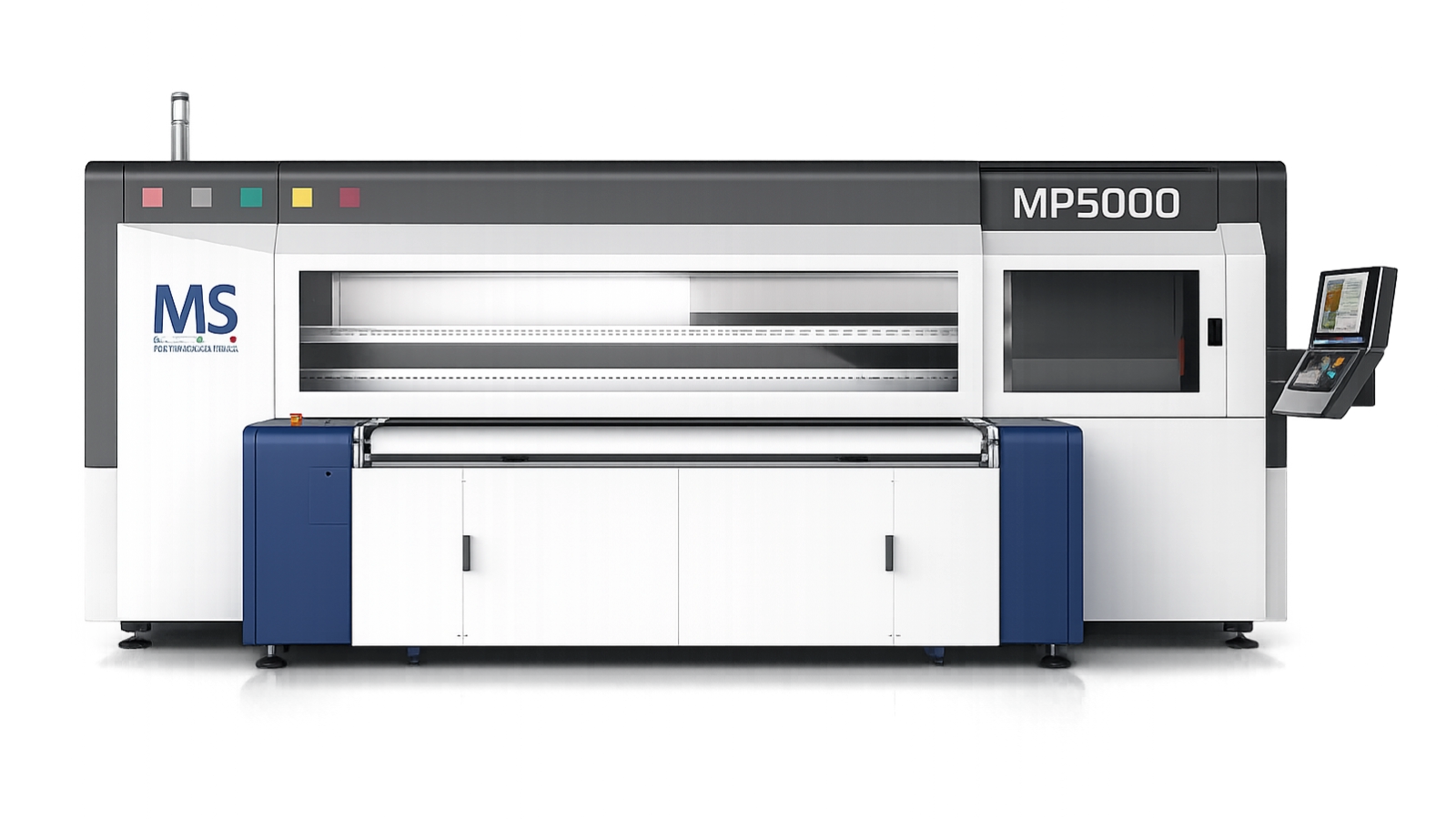

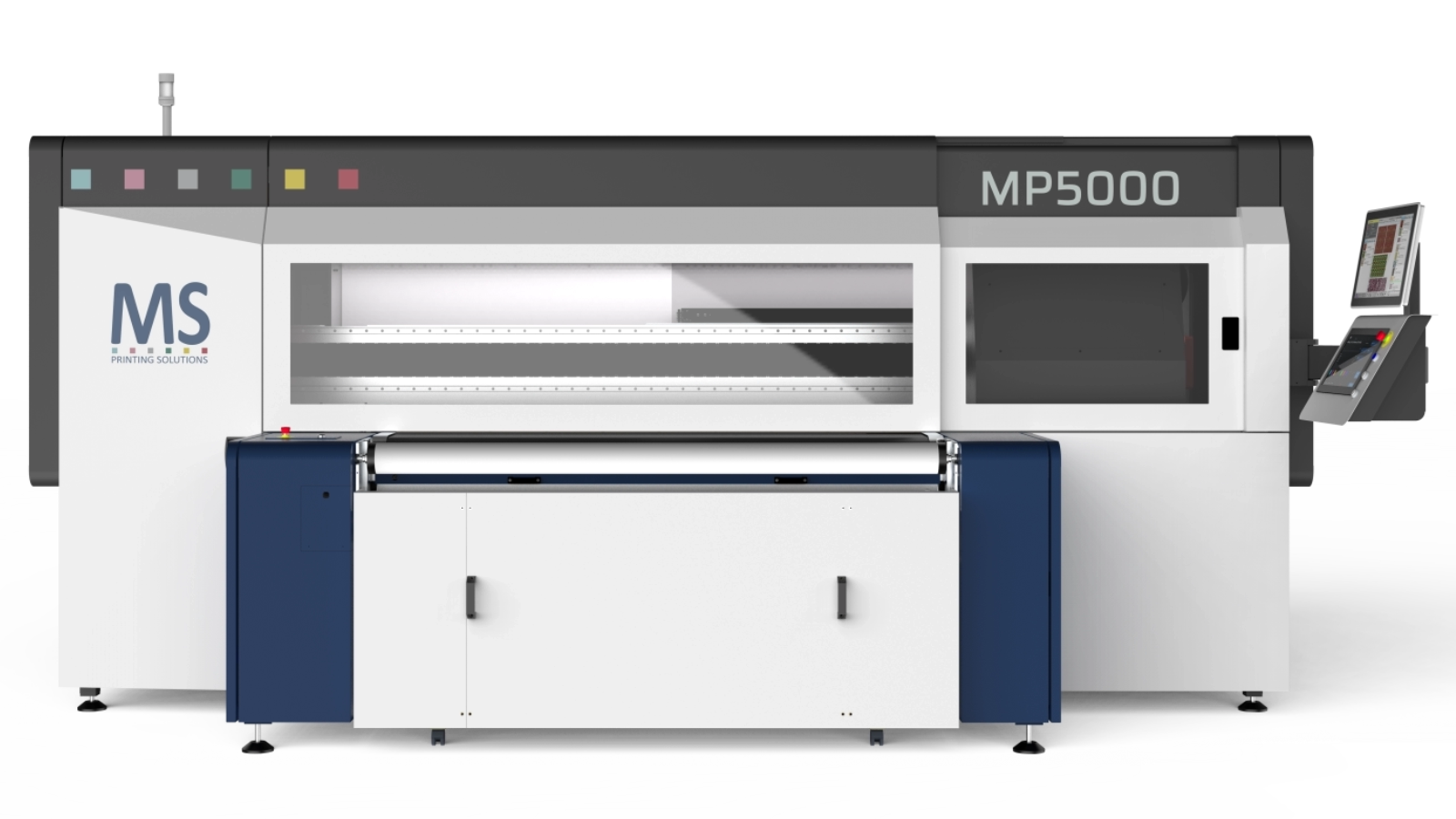

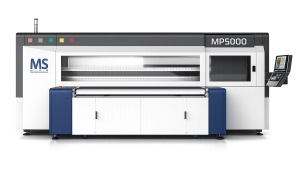

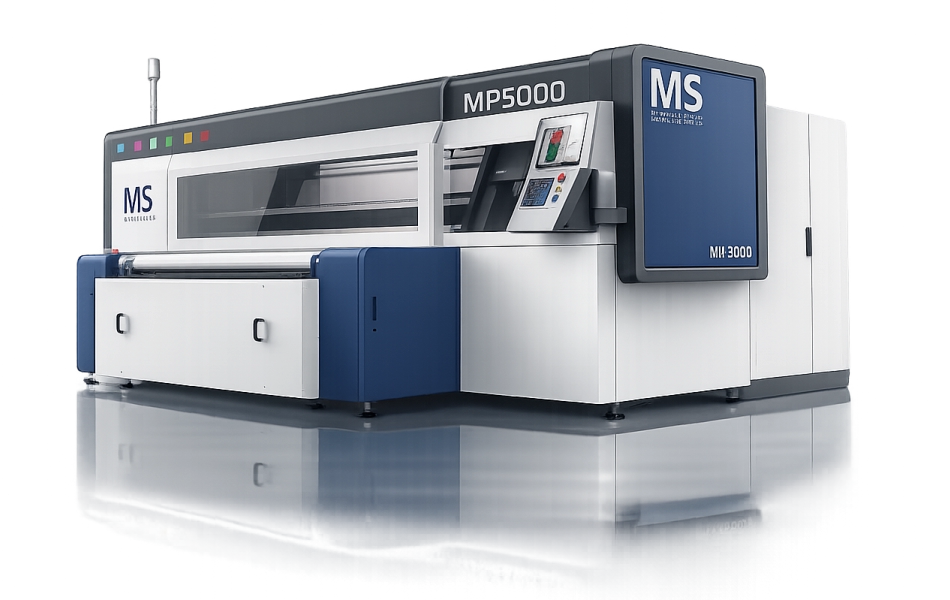

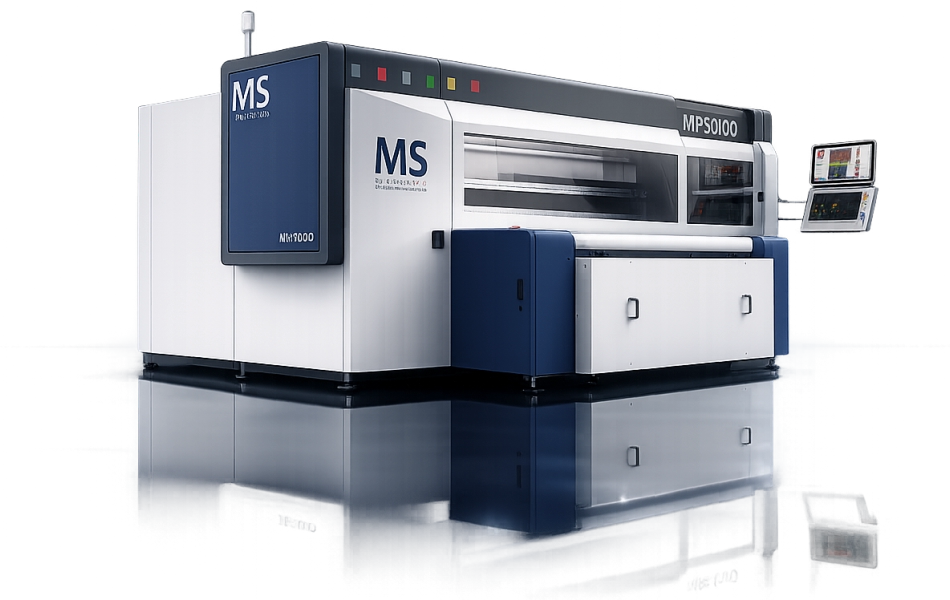

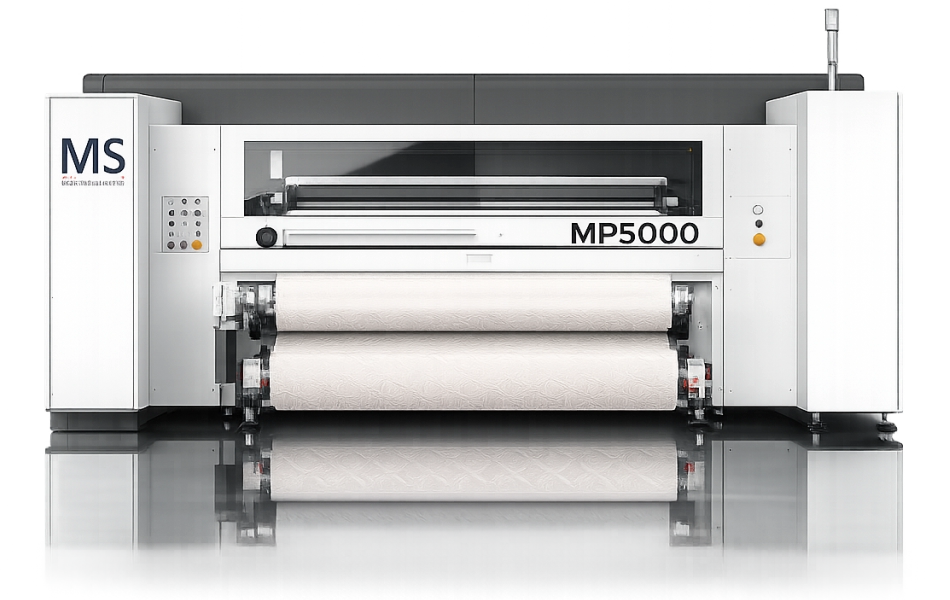

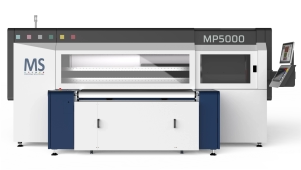

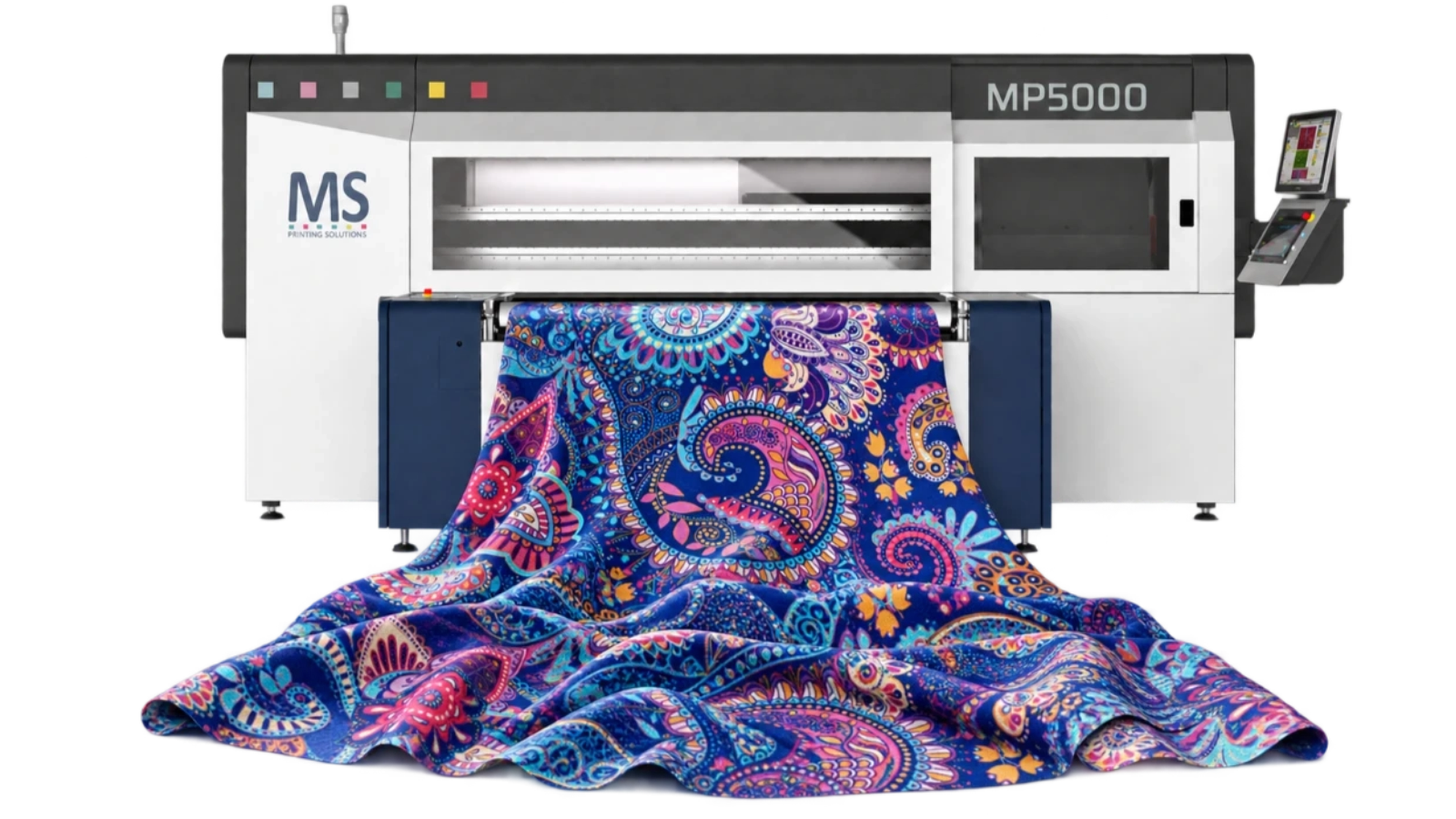

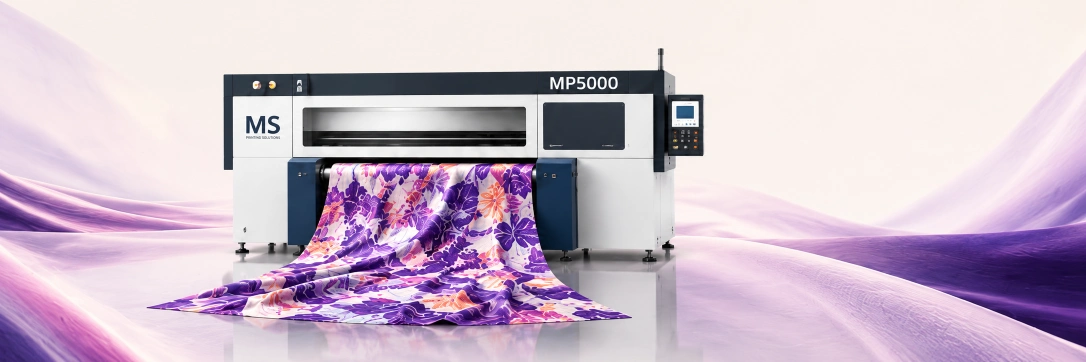

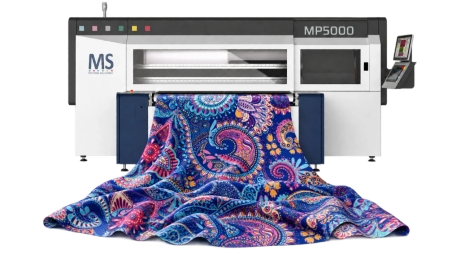

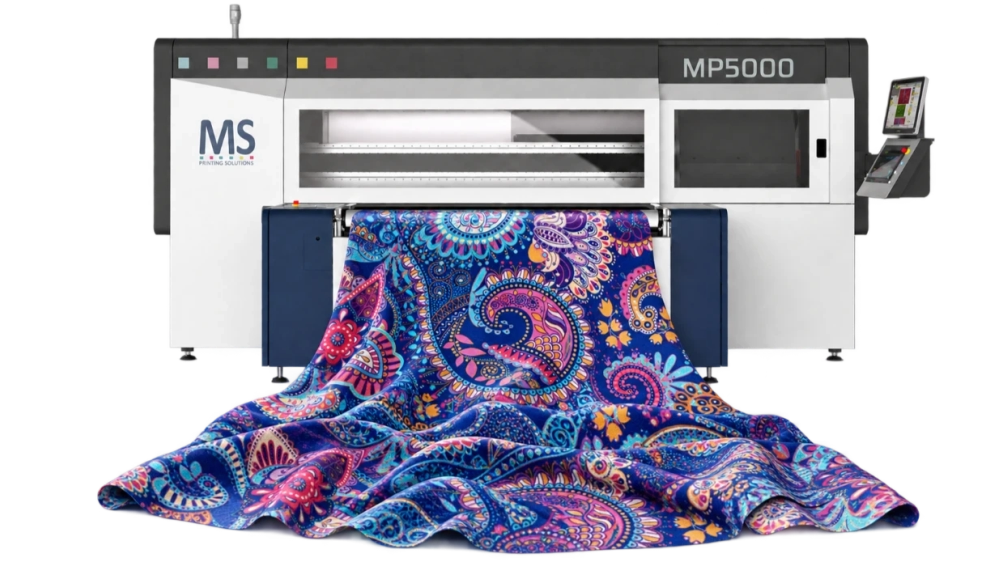

MP5000 is a multi-pass digital textile printing machine engineered for direct printing across a wide range of fabrics and production applications.

Printing technology

Multi-pass

Media

Fabric

Maximum printing width

1,800 mm

Colour configurations

4-8 colours

PRODUCTIVITY

Up to 35% More Productivity

Updated carriage-speed settings increase maximum movement from 1.693 m/s to 2.4 m/s, supporting up to 35% additional productivity and a shorter time to market.

PRINTHEAD TECHNOLOGY

Powered by Katana Printheads

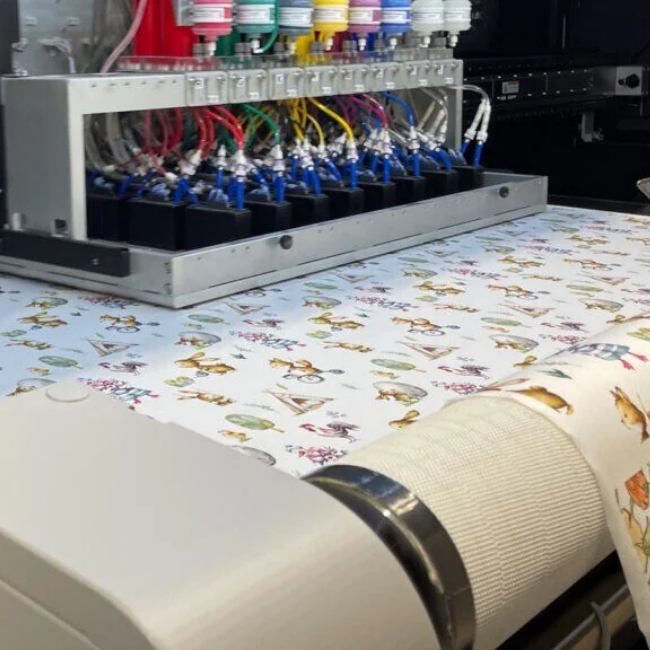

MP5000 can be configured with up to 16 KJ4B-600EX Katana Kyocera printheads, supporting stable continuous production, consistent image quality and reliable performance.

Printheads

8-16

Resolution

600 DPI

Grey levels

16

Drop size

5-24 pl

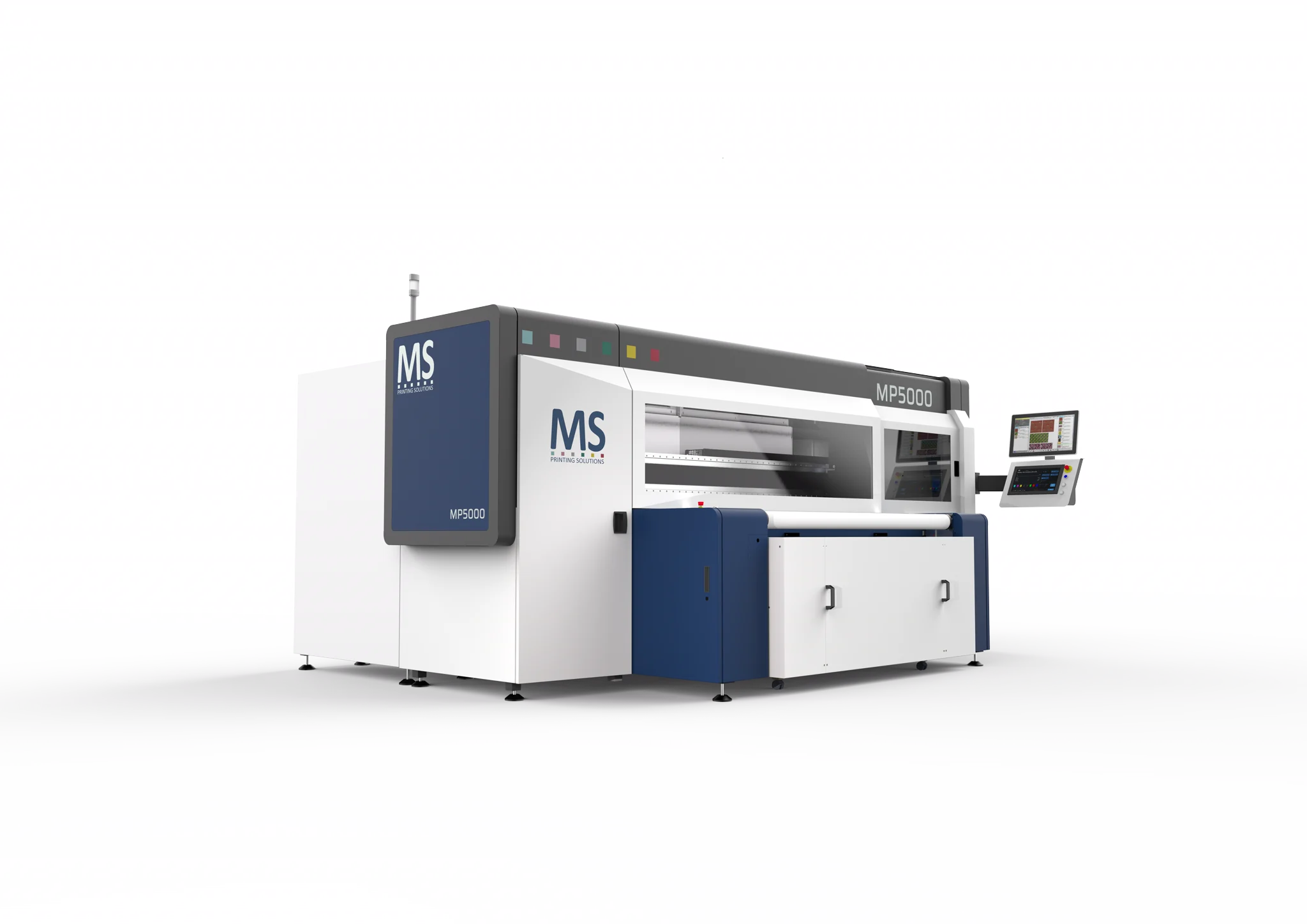

COMPACT ENGINEERING

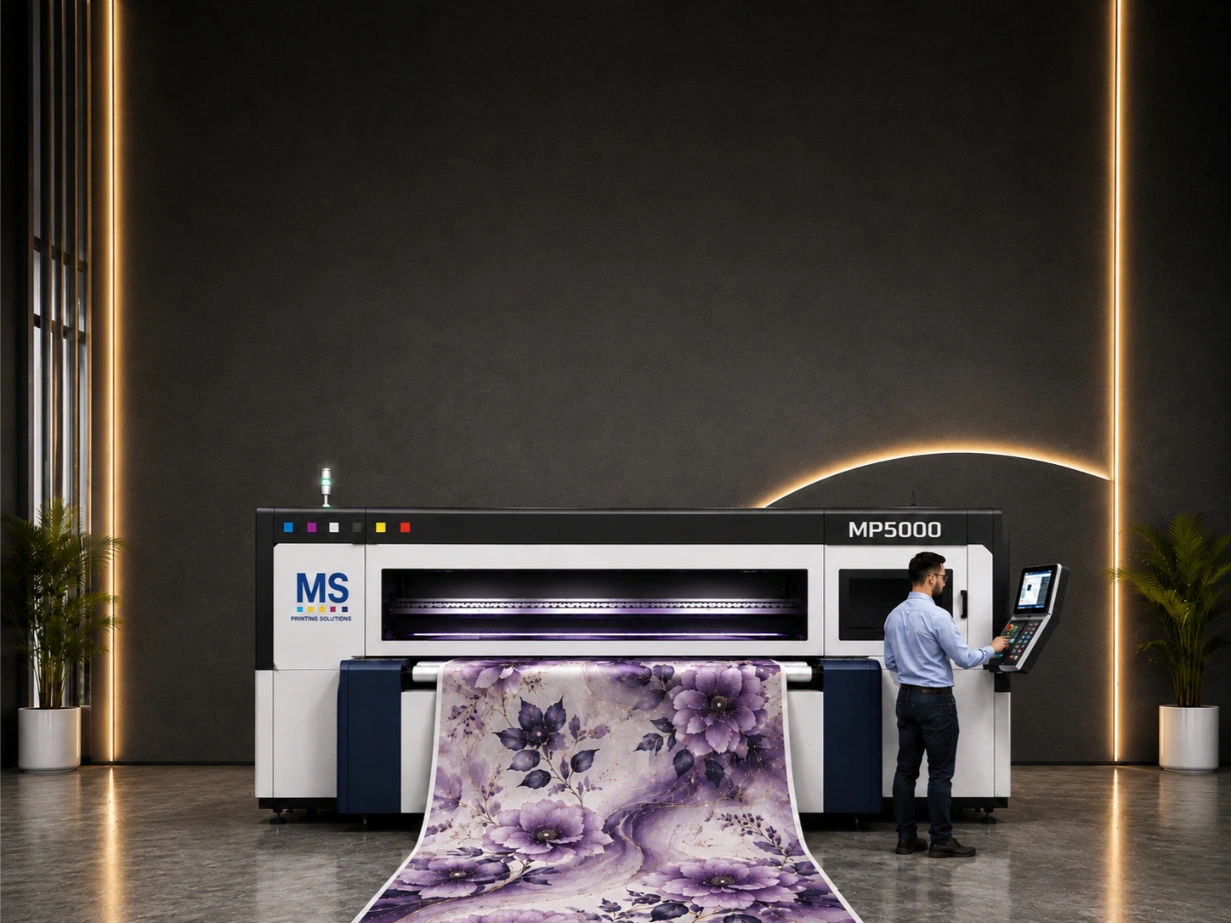

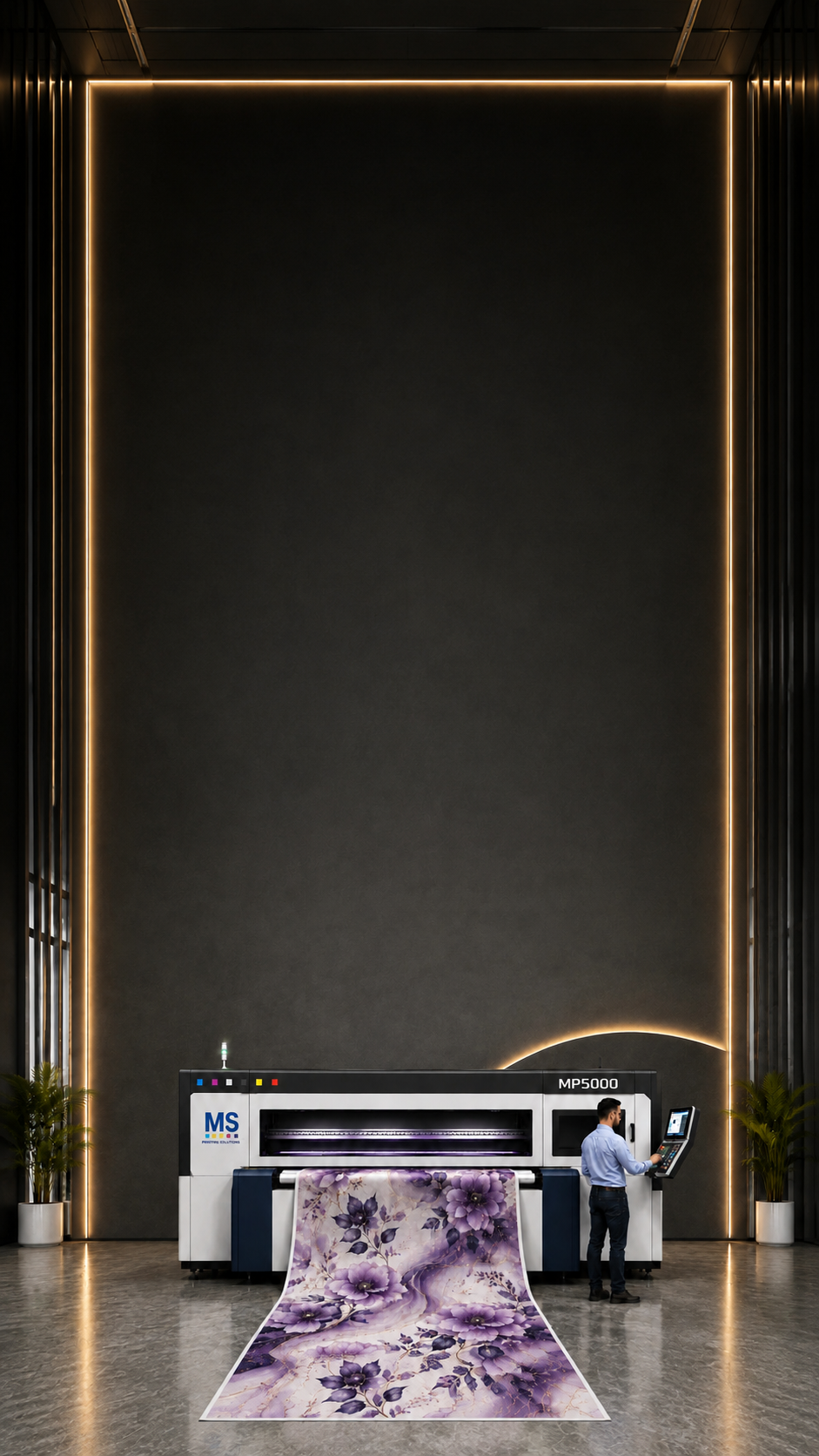

Designed Around the Operator

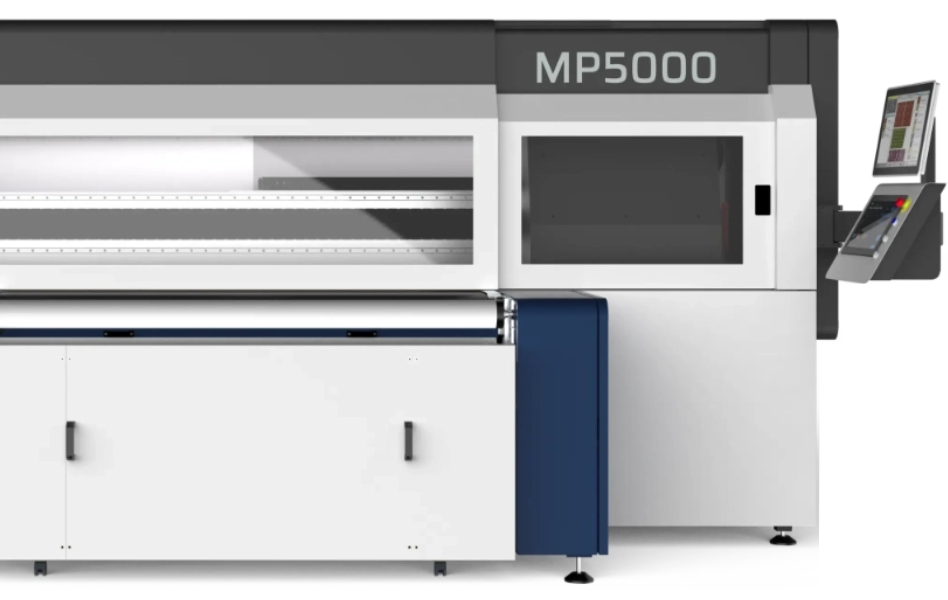

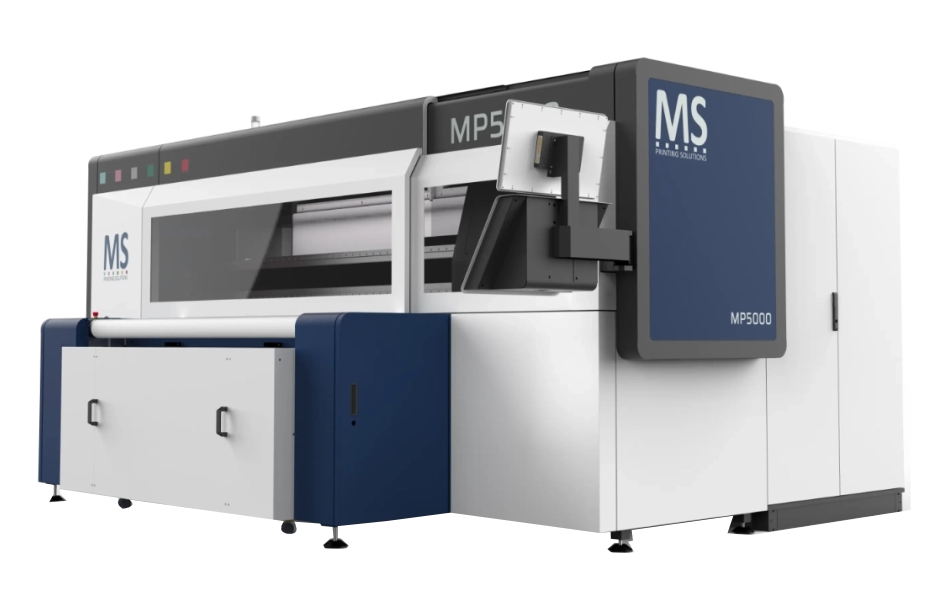

The redesigned structure improves visibility into the printing area, simplifies access to the dashboard and supports easier installation, commissioning and maintenance.

Dimensions

4,560 x 3,000 x 2,400 mm

Transparent process window

Compact dryer configuration

Improved operator accessibility

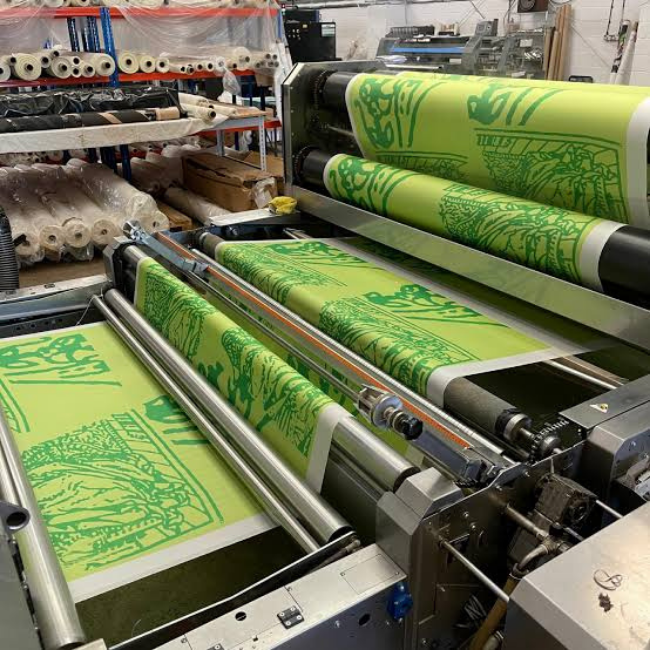

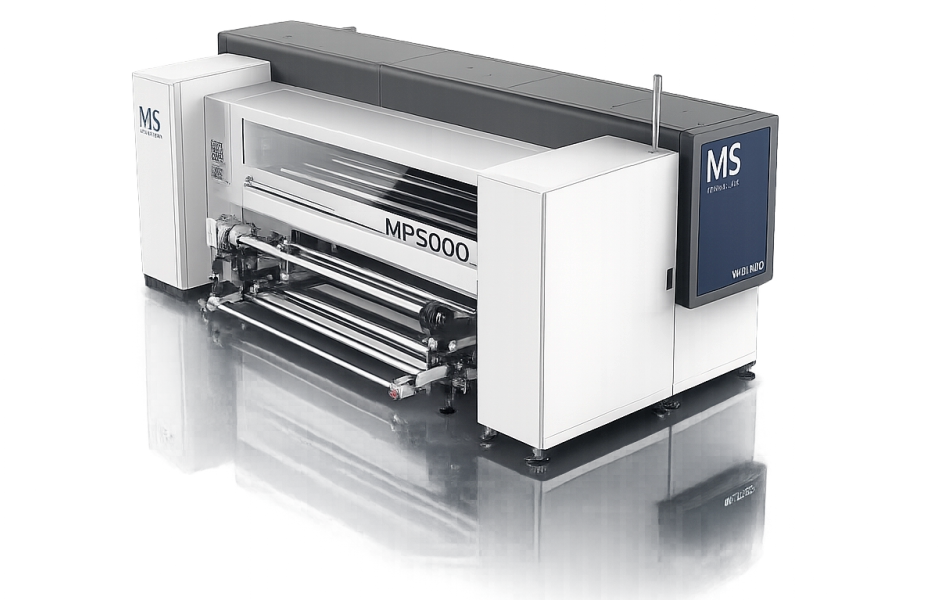

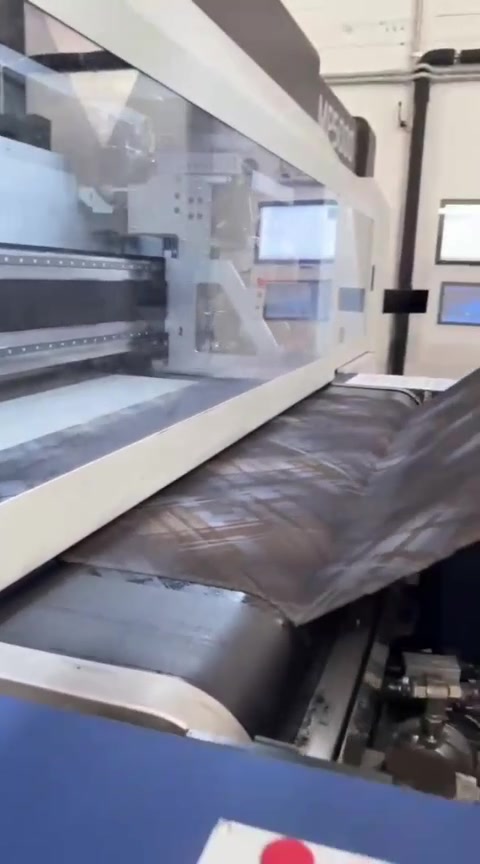

FABRIC MANAGEMENT

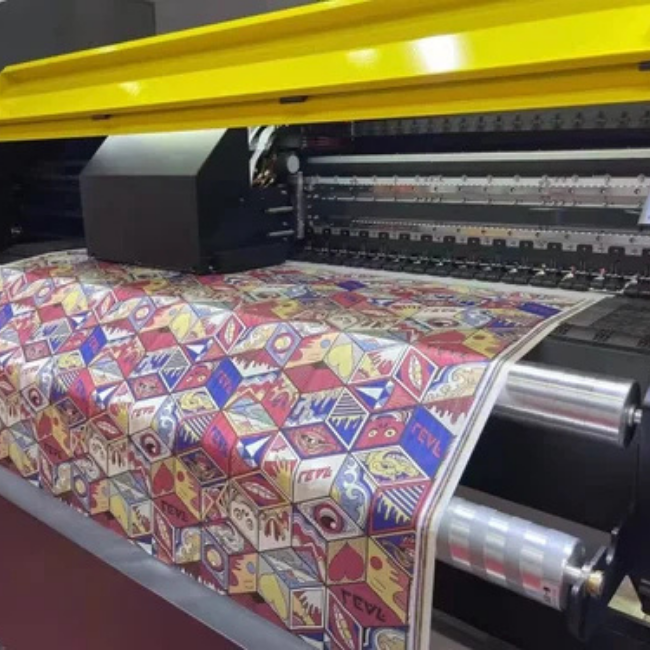

Stable Feeding. Consistent Results.

Torque-controlled unwinding, easy media loading and controlled fabric tension help prevent wrinkles, maintain alignment and support consistent print production.

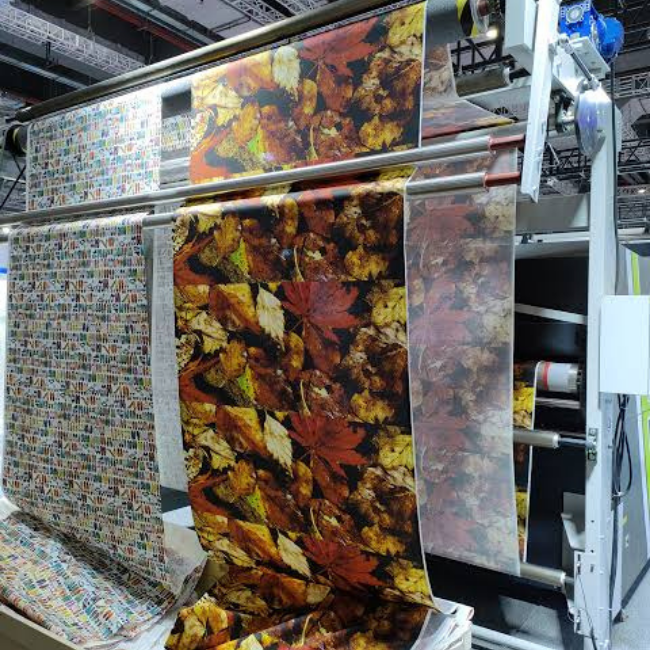

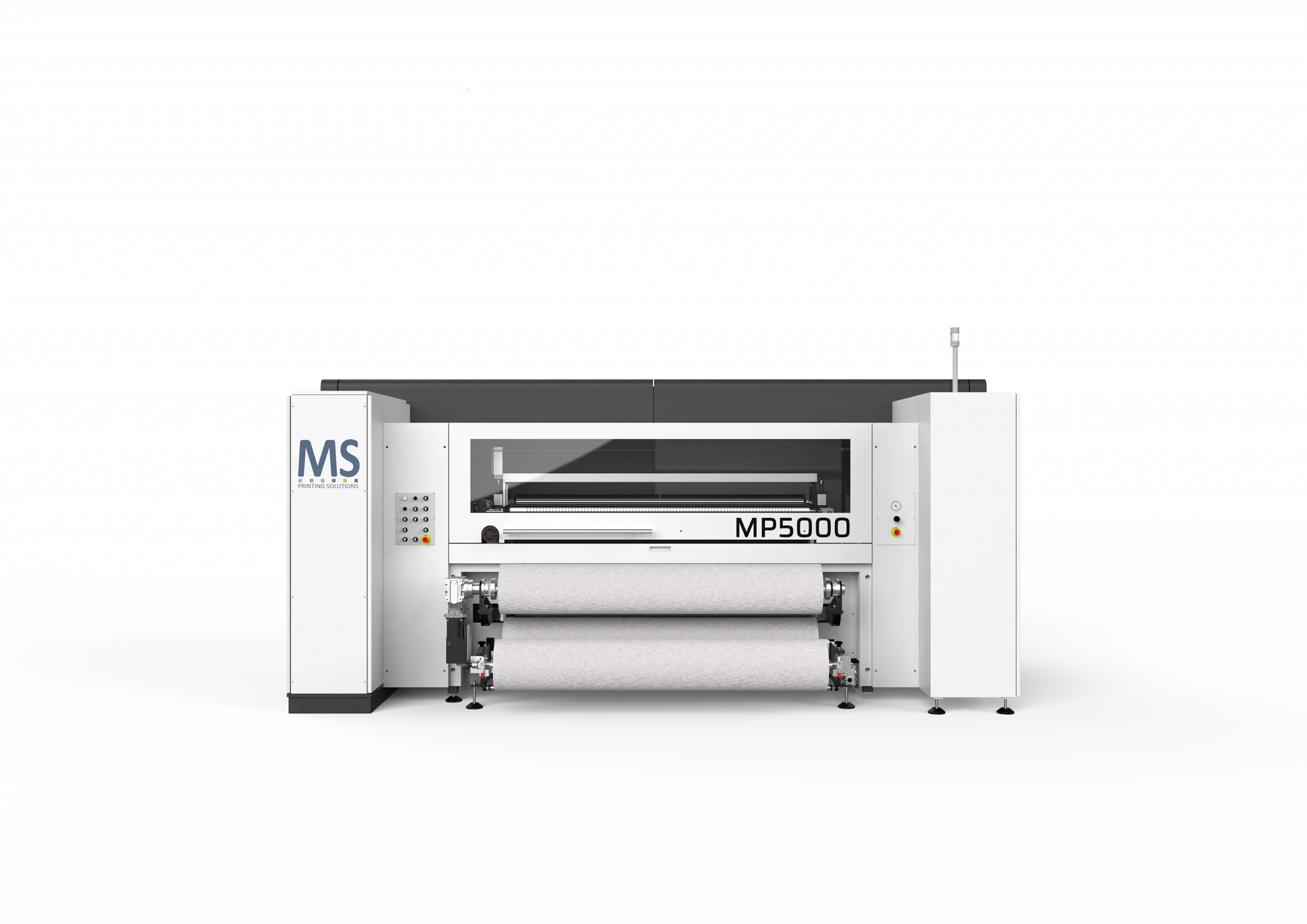

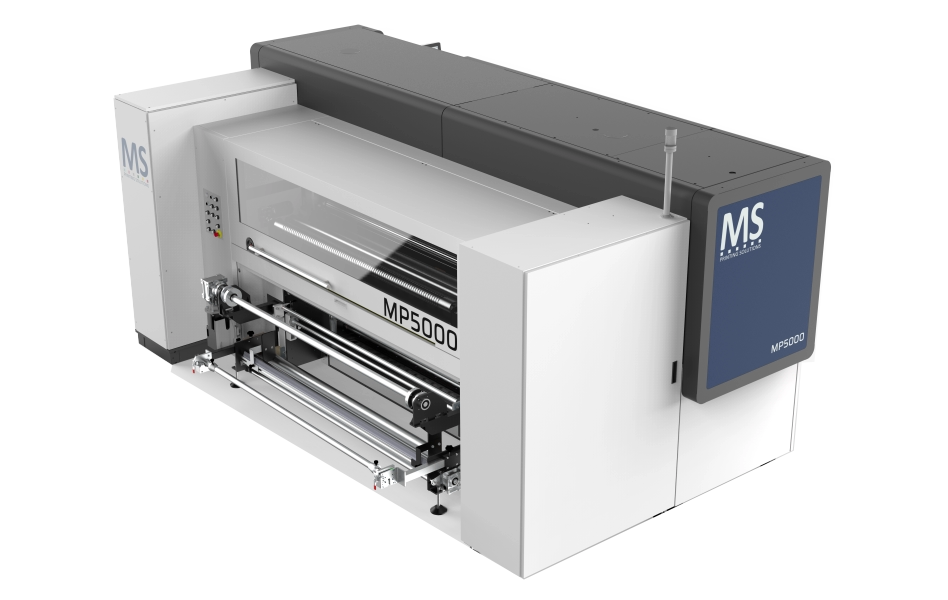

Winder and unwinder configurations

Cold pressure roll

Heated driven pressure roll

Integrated print-belt washing

VERSATILITY

Built for Multiple Textile Applications

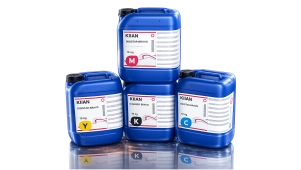

MP5000 supports reactive, disperse, pigment and acid inks for applications including fashion, home decor, automotive, accessories, technical textiles and wall coverings.

Reactive ink

Disperse ink

Pigment ink

Acid ink

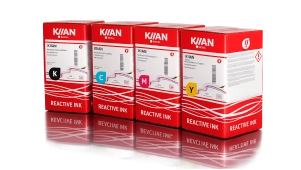

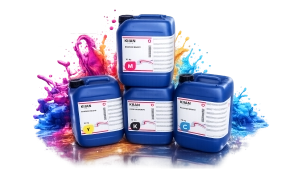

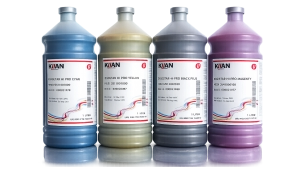

Kiian Digital ink compatibility
